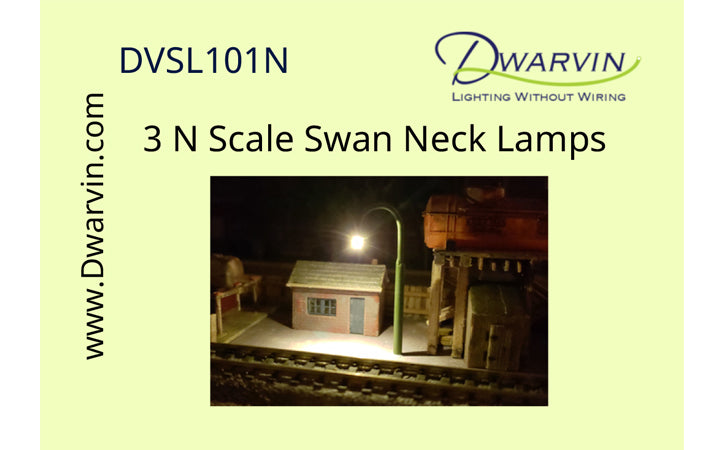

3 N Swan Neck Lamps
New and Improved: This is a slimmer version of our previous N Swan Neck Lamps. The OD of the insertion post is reduced from 1/8" to just over 1/16".
The Dwarvin Street Lamps add interest to the layout without being obtrusive. They are sold in sets of 3.
If you want a directional light, such as was prototypical from the 1920's on, then this lamp is for you. This is so different from typical LED lighting used on layouts that tends to splay light out over a broad area. This Swan Neck lamp, sometimes called "Gooseneck", would be the most commonly seen light on streets up through the 1930's and beyond.
The Swan Neck Lamps are made from thin walled metal tubing and fiber optic cable. The aim is to reproduce prototypical lighting and as such they are scaled to be equivalent to 18’ (6m) in height.
- These are easy to insert - oversize a hole using a 1/16” diameter hole (1.8mm precisely) in the layout and insert the fiber through the hole and then the base of the lamp, which will be a snug fit into the hole. Insert the fiber through the layout and into the Lamplighter box. Each lamp comes with 4’ (~1.3m) of 0.75mm fiber optic already attached to allow easy placement in proximity to the Lamplighter box. If the height of the lamp needs to be decreased, just insert it further into the 1/8” diameter hole in the layout.
The Dwarvin Street Lamps add interest to the layout without being obtrusive. They provide directional lighting, which is what would be seen in streets prior to the advent of the mercury vapor lights that become widespread in the 1970's. The article on Directional Lighting provides a bit more background on this subject.
To change the ambiance / color, add a drop of translucent paint to either end of the fiber. If you add it to the end of the fiber that is inserted into the Lamplighter, then make sure the paint is dry prior to inserting the fiber into the Lamplighter box. See the video on how to do this. To create an old world look, I use the Tamiya X-26 Orange Translucent paint, however, you may use whatever paint you like or even a colored marker.
